SampleCube Enhances Sample Measurement Accuracy and Safety

Timegated® Raman SampleCube is an add-on for the Timegated® PicoRaman M3 instrument, leveraging the breakthrough Timegated® Technology to deliver clear data without background interference. SampleCube is designed to offer more representative sampling by utilizing a larger sample surface area, ensuring a broader and more accurate representation.

Quick features of the SampleCube

  • More representative sampling via a larger surface area
  • Enhanced eye safety
  • Limiting laser exposure
  • Easy focus distance adjustment
  • Suitable for many sample types from liquids to solids
  • Used with non-contact probes

Download SampleCube brochure

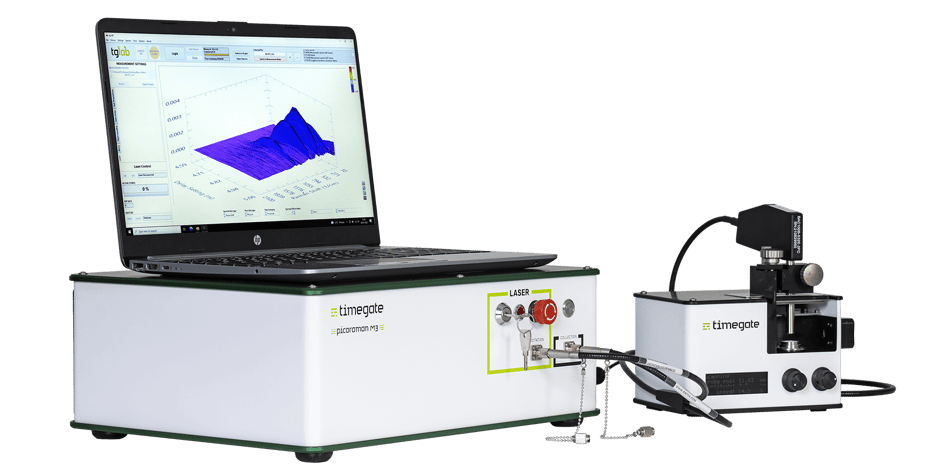

Timegated® Raman spectrometer with SampleCube add-on.

The PicoRaman M3 instrument with the SampleCube add-on.

Innovative design for a safe and easy operation of the SampleCube

The SampleCube offers a sampling from a larger sample surface, limiting laser exposure for the sample, easy laser focusing, and enhanced eye safety.

The SampleCube allows for more representative measurements, with options for eccentric rotation of the sample cup holder and simultaneous scanning motion of the measurement probe, while users can adjust the amplitude to sample either a smaller area or the entire surface.

The scanning cycle effectively covers the entire surface area while minimizing laser exposure to any single point, reducing sample degradation, with the option for users to adjust the scanning speed to further limit exposure time. This enables the measurements of sensitive samples as well.

The SampleCube features a sliding door to close the sample enclosure, minimizing the risk of retinal damage from powerful lasers, while its black interior reduces light reflections for enhanced eye safety.

Versatile sample types and application capabilities

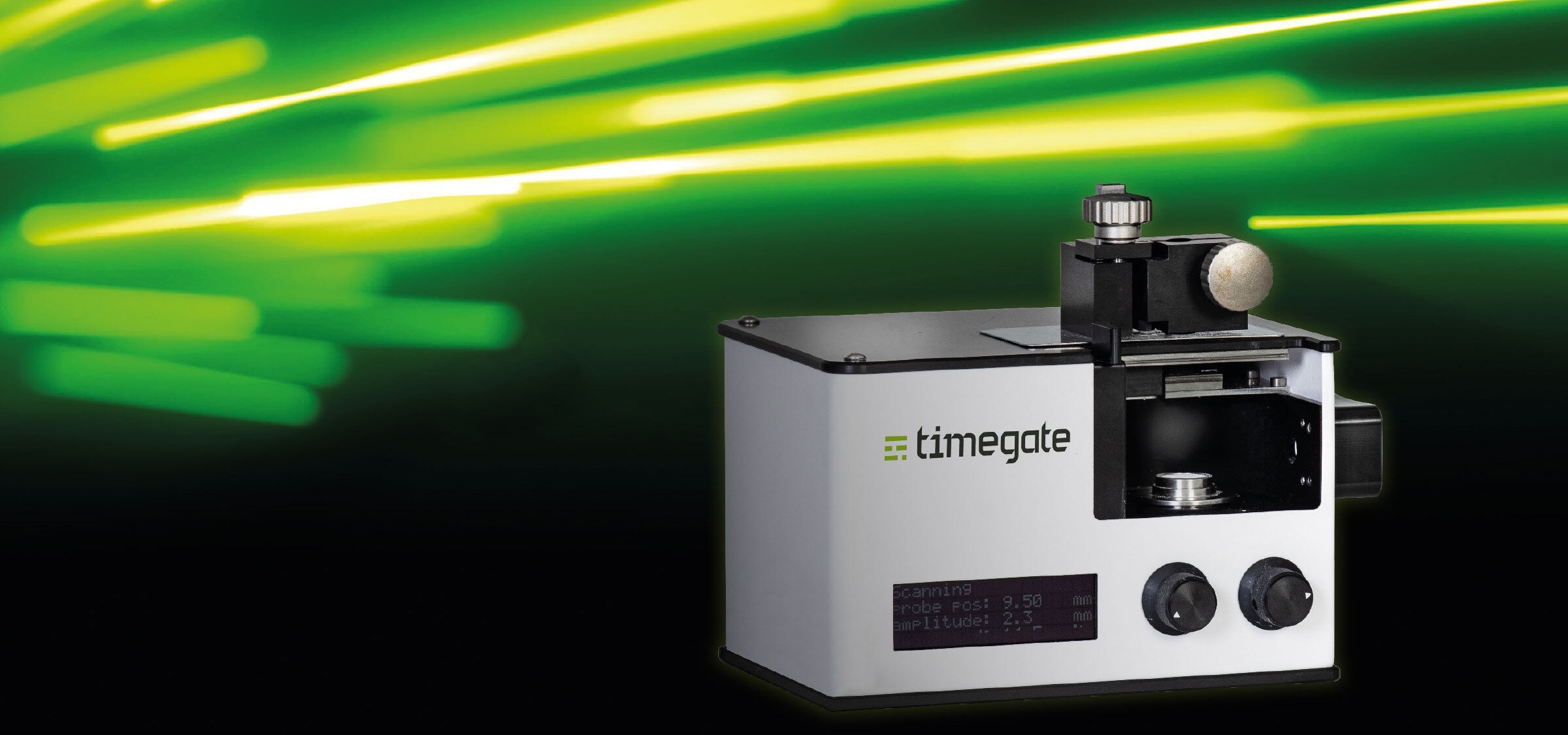

Timegated® SampleCube.

SampleCube with illustration.

While the SampleCube is primarily designed for powder samples, its versatility allows it to measure flat or malleable samples. Additionally, it can accommodate liquid samples in vials or cuvettes by enabling the horizontal insertion of the measurement probe into the sample enclosure. The SampleCube allows for measuring all the mentioned sample types in a controlled and eye-safe manner.

Utilize the SampleCube for more optimized, easy, and safe sample measurements. Our specialists are happy to discuss your specific samples and applications to find the best solutions for you. You can access these cutting-edge measurements through instrument purchase, or if you only have one-time project samples, we also offer Timegated® Sample Measurement Services.

Download SampleCube brochure

Download PicoRaman M3 brochure

Have a look at the SampleCube demo video for a more visual presentation.
