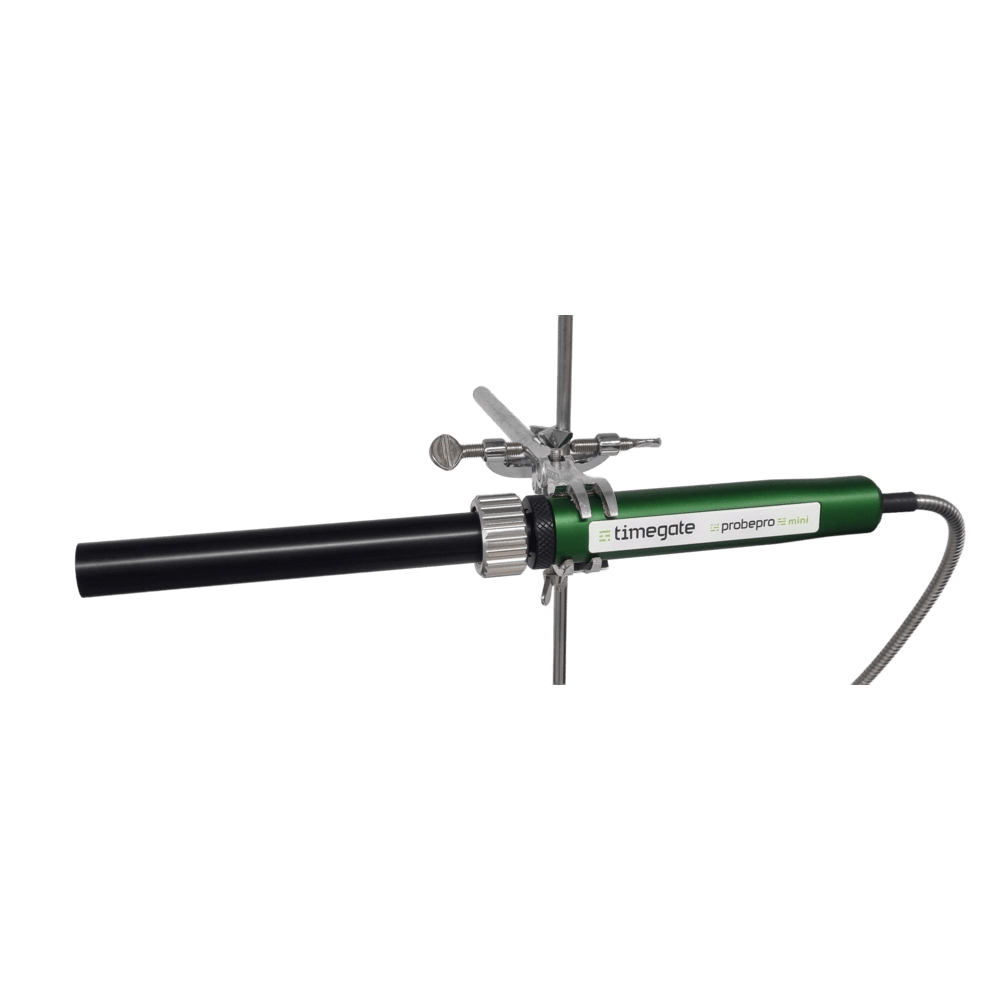

Long-Working-Distance Optics for ProbePro mini
Extended measurement distance for flexible Timegated® Raman spectroscopy with ProbePro mini.
The Long-Working-Distance Optics extend the measurement distance to 60 mm, enabling non-contact Raman measurements when the sample or measurement point is difficult to access. Designed for use with ProbePro mini, they provide greater flexibility while maintaining reliable Raman signal collection.
Flexible Measurements from a Greater Distance
The Long-Working-Distance Optics offer a flexible solution for applications where access to the measurement point is limited or a longer distance between the optics and sample is needed.
- 60 mm working distance for measurements from a greater distance
- Non-contact Raman measurements
- 300 µm collection spot
- NA 0.22 for efficient Raman signal collection
- Flexible access to challenging
measurement points - Compatible with ProbePro mini and Ingold optics
- Maximum long-term operating temperature of 50 °C

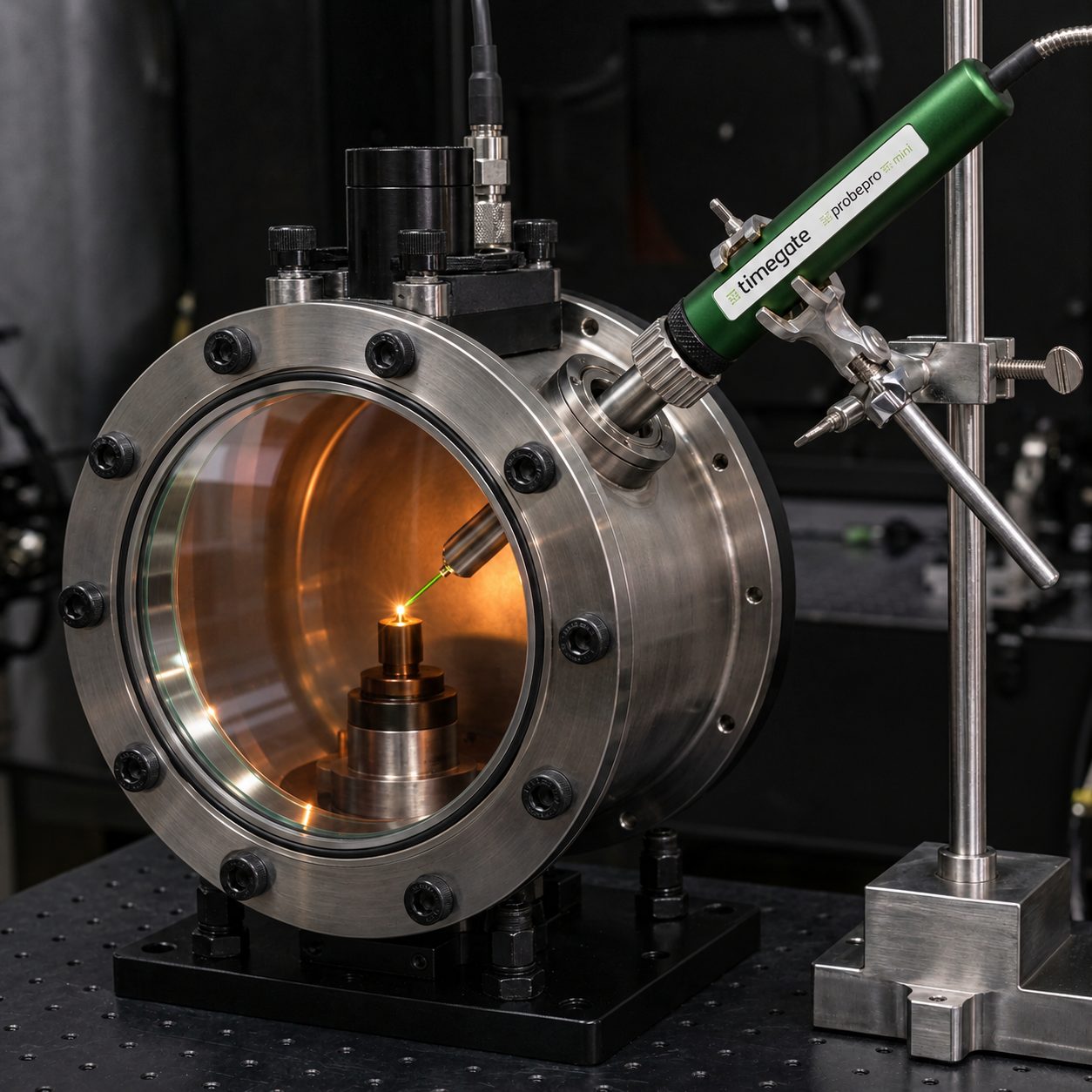

AI-generated illustration, image does not represent an actual measurement setup.
