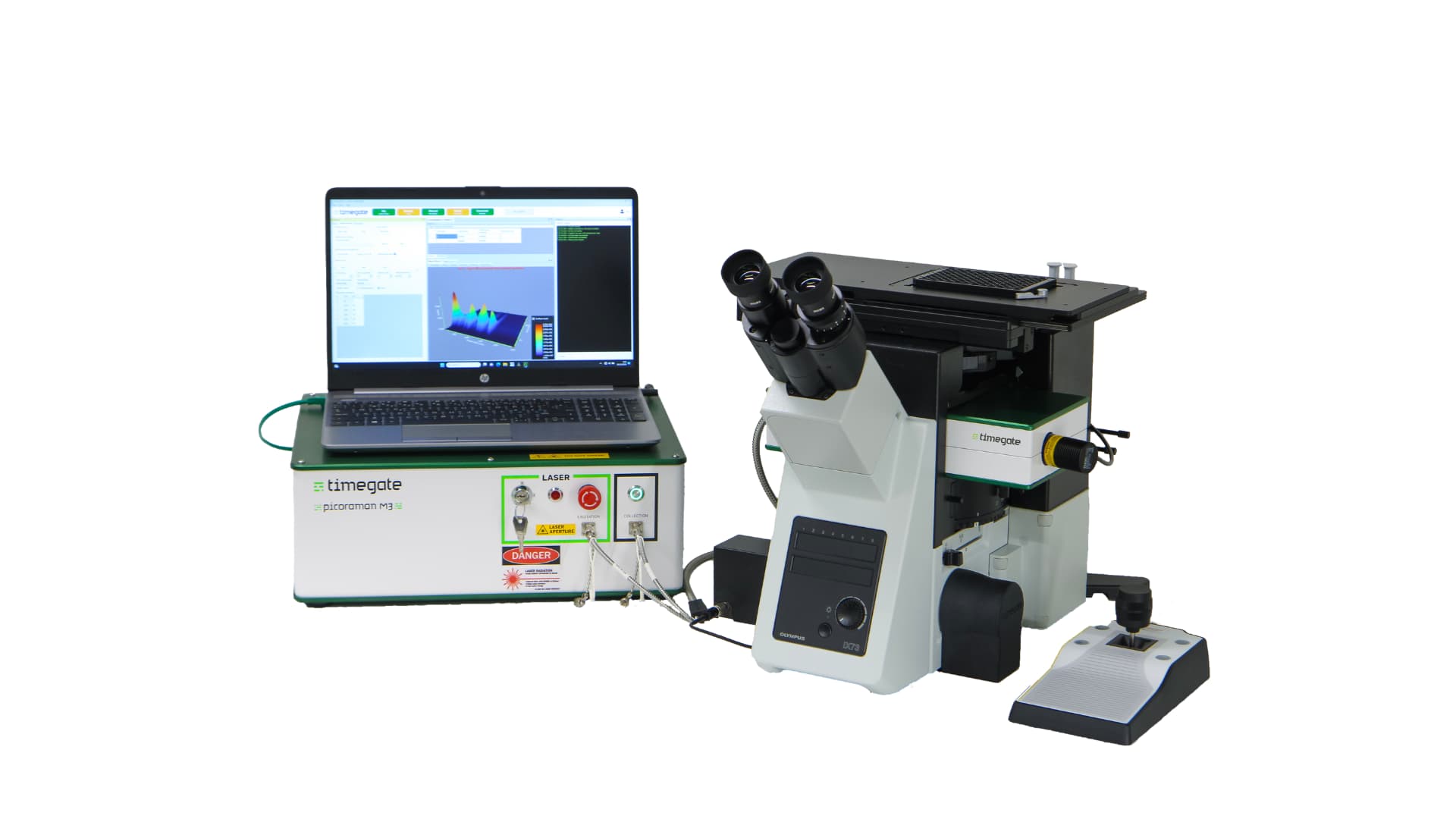

MicroPlate HTS System integrated into an Olympus IX73 inverted microscope and connected to a PicoRaman M3 spectrometer.

MicroPlate HTS System

High-throughput Timegated® Raman Spectroscopy at a microscale.

Scientist using MicroPlate HTS System

The MicroPlate HTS System offers a convenient and efficient High-Throughput Screening using a microplate with 96 wells. With this system, the samples in the wells are measured through the glass bottom, ensuring that there is no contact with the sample. This non-destructive measurement technique provides real-time and accurate data on the concentration of each of the 96 samples.

The MicroPlate HTS System is built upon the Olympus IX73 inverted microscope. The process is streamlined by removing the requirement for manual measuring and instead, the system utilizes a motorized stage for automated measurements. Timegate provides the complete system, which includes the microscope, motorized stage, and the deck unit.

Download the brochure below for more information on the application areas!

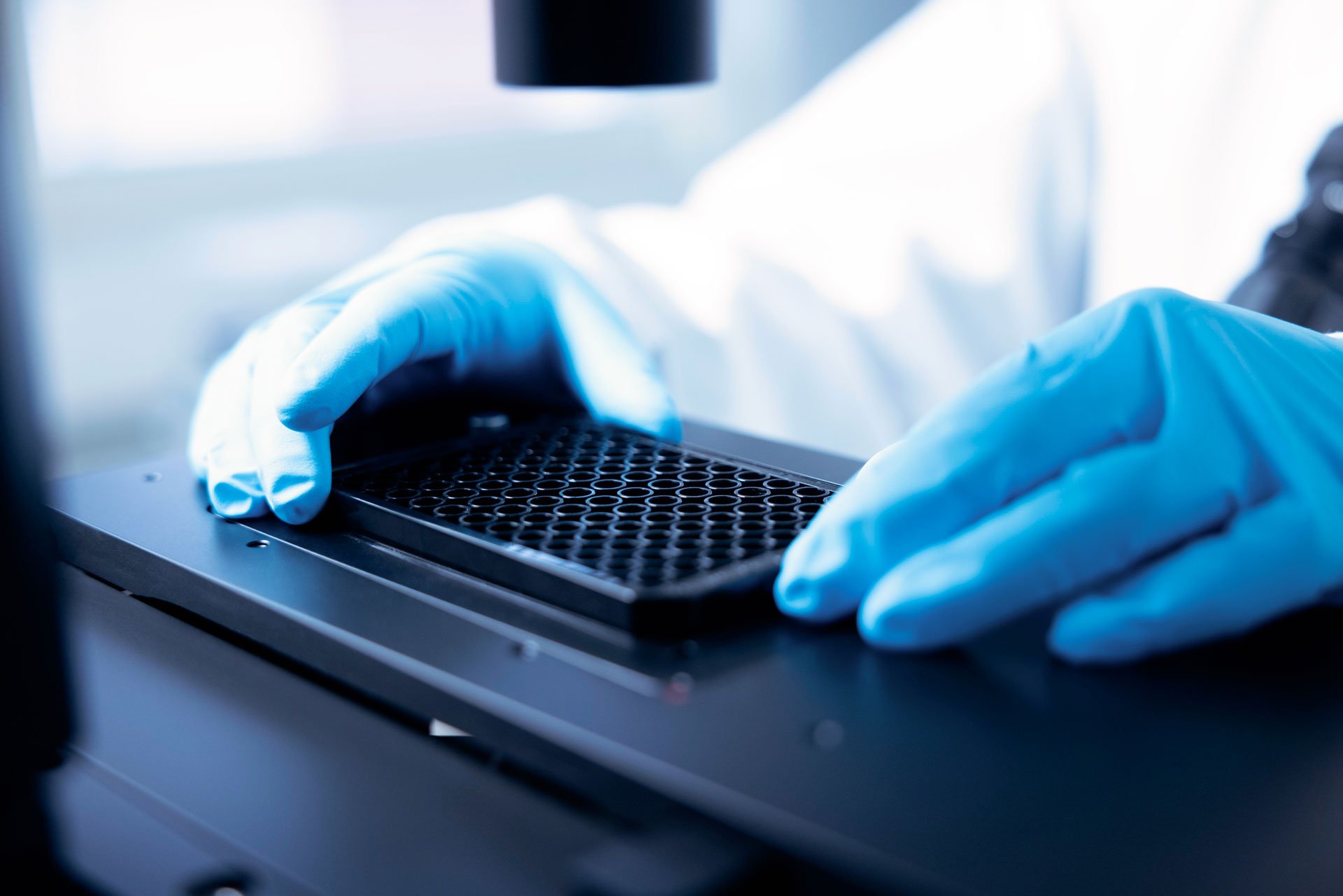

MicroPlate being adjusted for high-throughput measurements.

Outstanding features of MicroPlate HTS System

  • Automated and non-destructive measurements
  • Adjustable measurement depth
  • Accurate, real-time data of each of the 96 samples
  • Integrated camera and illuminator for visual observation
  • Motorized fine focus

Download MicroPlate HTS System brochure
